Light Duty Roll Handlers

Smart Schlumpf

Laser-Guided Automatic Roll Lifting, Turning and Loading

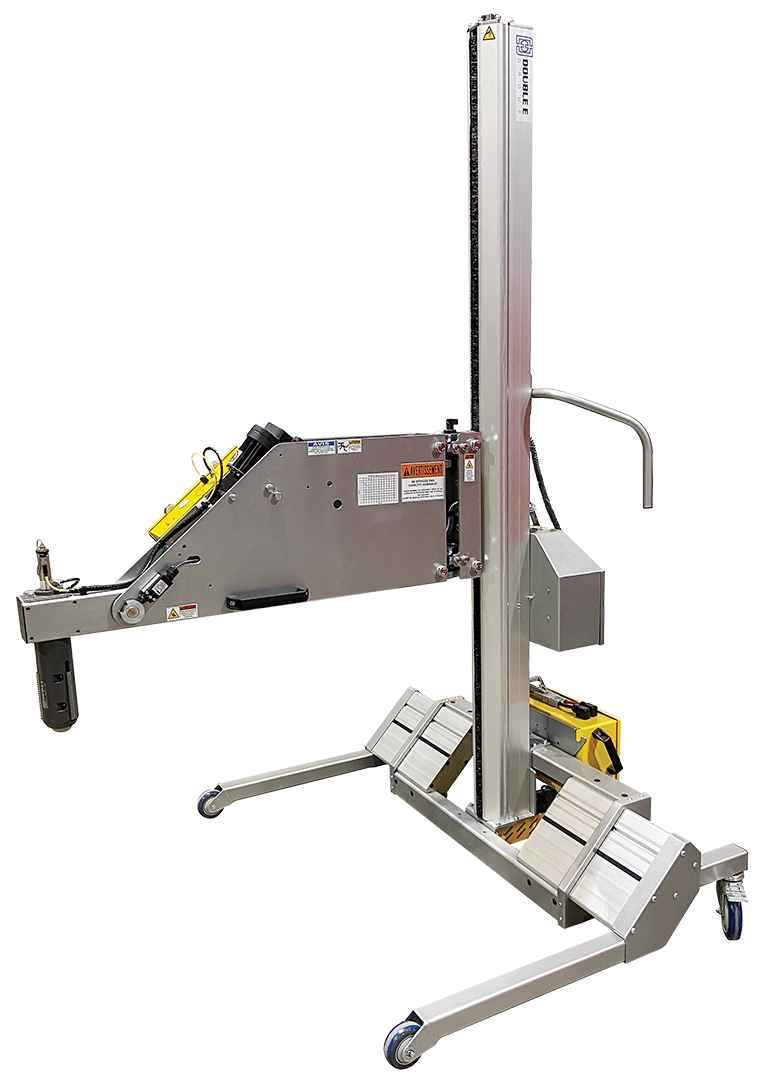

Schlumpf’s newest addition to its popular line of ergonomically-designed roll handlers is the ERH-400 Smart Schlumpf. Built upon the best-selling ERH platform. The Smart Schlumpf is the first-ever mobile roll handler to incorporate a laser-guided positioning system. The system uses stored data to automatically stop at one or more spindle heights for easy and accurate roll loading. An easy-to-use pendant control on the handle bar assembly allows the operator to lift, turn and load rolls virtually hands free, which dramatically increases operator safety.

Features:

Easy-to-use pendant controls to lift and turn rolls
Automatic engagement of pusher controls
Laser-guided positioning system to locate multiple spindle heights
Simple, repeatable, and precise automatic roll loading
Store up to 32 separate loading positions
User-friendly - extremely easy-to-operate-virtually hands free
Dramatically enhances safety by minimizing operator interaction and exposure
Eliminates operator loading errors and the damage and hazards associated with them
Turns most two-man loading operations into safer and more efficient one-man loads
Increases efficiency by speeding loading times and the elimination of material damage
Executes stored loads with 100% accuracy
Battery Life: 8 hours (under normal operating circumstances)
Roll capacity: up to 400 lbs. (dependent on width and diameter of roll)

Increase Safety & Efficiency

The ERH-400 Smart Schlumpf will dramatically increase the efficiency and the safety of loading rolls in your production process. Eliminate wasted time from repeat adjustments, damage to valuable rolls or shafts, ergonomic strain from repetitive push/pull and the inherent risk of injury from manual materials handling. The Schlumpf ERH 400 Smart Schlumpf can also turn a cumbersome, two-man load into a safe, easy and automated one-man operation.

In Use By Industry Leaders

The ERH-400 Smart Schlumpf is presently in use by several leaders in the bottling, flexible packaging and nonwoven industries. Find out how your company can do the same. Contact Schlumpf today.

Easy-to-Use Controls

The ERH-400 Smart Schlumpf features an easy-to-use, ergonomically designed pendant control with an emergency stop for increased safety. A large status screen displays the current position of the load and a battery meter displays the current charge state of the battery.

Advanced Automatic Functions

The ERH-400 Smart Schlumpf uses laser-guided positioning to quickly and safely locate the loading position on the shaft. Once found the roll can be easily placed on the shaft using the piston assembly.

ERH-200

The revolutionary ERH-200 Portable Electric Roll Handling Machine with 200 lbs (90 kg) lifting capacity.

The Schlumpf ERH-200 is our light weight electric powred material lifting unit. With plenty of different tooling options, this unit is great for almost all low capacity roll handing situations.

These units are battery powered to make lifting, turning and maneuvering a roll easy, ergonomic and improve productivity.

Capacities to 200 lbs (90 kg)

Lightweight aluminum frame

Customizable height and base

Manual Tooling

Several tooling options including: flat platform, roll cradle, probe, roll turner, and swivel top.

Ergonomic and efficient!

ERH-400

The revolutionary ERH-400 Portable Electric Roll Handling Machine with 400 lbs (181 kg) lifting capacity.

The ERH-400 is used to lift and turn rolls by the core for palletizing, transporting and loading. Holding the rolls inside the core without contacting the valuable material reduces the risk of both material damage and operator injury, saving your company money and valuable resources.

Capacities to 400 lbs (181 kg)

Lightweight extruded aluminum frame
Easy to push and maneuver
Rugged
Low Maintenance
Tooling options: OD Clamp, Horizontal probe, roll turner, and more!
Custom Tooling Options Available!

Model	Best Use	Capacity
ERH-200	Low capacity lifting and turning rolls by core, flat platform lifting and turning, probe lifting	200 lbs (181 kg)*
ERH-400	Lifting and turning rolls by core, probe lifting, OD clamping and turning	400 lbs (181 kg)*

*Actual capacity depends on roll width and roll weight combined

Manual

The MRH portable manual roll handling machines are used to lift and turn rolls by the core for palletizing, transporting and loading. They are manually powered to simplify operation.

Capacities to 500 lbs (227 kg)

MRH-300/500 Manual Roll Handler

With its low cost, maneuverable compact design, and multiple tooling options the MRH series is a safe, cost effective and adaptable solution for many lifting applications.

Schlumpf’s MRH series of portable manual handling machines is a versatile tool for many lifting applications. Designed for portability, ease of use and affordability, the MRH gives operators a safe, cost effective alternative to “manhandling” valuable products.

The MRH can be combined with a wide variety of tooling and lifting attachment options such as universal roll handling mandrels, spreader bars, lifting eyes, cradle platforms as well as custom designs. With its quick change tooling feature, lifting attachments can be changed without the need for tools. The self locking mechanical lifting system makes raising and lowering loads up to 500 lbs fast and easy.

Models	Best Use	Capacity
MRH-300/500-PT	Lifting, Turn & Transporting Rolls By the Core. Custom options available.	300 lbs (136 kg)* to 500 lbs (227 kg)*

*Actual capacity depends on roll width and roll weight combined

Foot-Pump Lift

Schlumpf’s HRH-1000 Narrow Web Lifter is a versatile tool for many converting applications. Designed for portability, ease of use and flexibility, the HRH-1000-PRP gives operators a safe, low cost alternative to “manhandling” valuable products. The HRH-1000-PRP is ideal for narrow web machinery with cantilevered unwinds and rewinds such as label presses, die cutters, inspection machines, laser printers and doctor machines. The HRH’s roller probe makes lifting, transporting, loading and unloading rolls with weight to 1,000 lbs (450 kg) fast, easy and completely safe. No more bending over to access rolls on low-mounted spindles.

With its maneuverable, light weight and compact design, the HRH is ideal for crowded machine floors and press rooms. Custom configurations & tooling are available upon request.

Capacities to: 1000 lbs (453 kg)

Foot pump for raise/lower

25 inch maximum stroke
